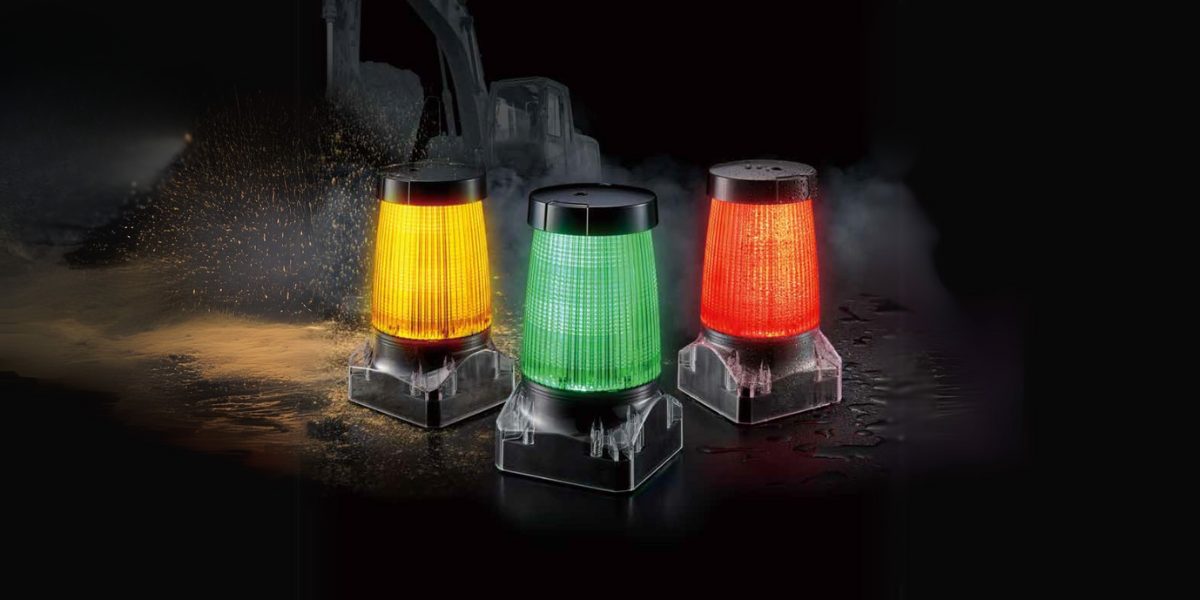

High-performance signal indicators for extreme environments
Designed to withstand the harshest conditions, Patlite’s new signal light combines durability, outstanding visibility, and maximum versatility. It’s the ideal solution for use on construction machinery and in demanding industrial environments.
Reliable performance even in critical situations
Thanks to exceptional resistance to shock and vibration (up to 110 m/s² and 1,000 m/s²), this device ensures continuous and reliable operation, even on heavy-duty vehicles or systems exposed to strong mechanical stress.
Maximum protection against water, dust, and extreme temperatures
Equipped with IP69K protection, it is completely resistant to dust, high-pressure water jets, steam, and high-temperature washes. It operates reliably across a wide temperature range, from -40°C to +85°C, and its internal ventilation system prevents condensation, ensuring consistently optimal visibility.
Smart visibility for every need
The device supports multicolor signaling, with 3 primary colors (red, amber, and green) and several configurable light effects, including distinct flashing modes. This feature is especially useful for identifying operational statuses, even for users with color vision deficiencies.
Two control modes for maximum flexibility:
-
CAN Communication Control (SAE J1939)
Perfect for use on mobile machinery and industrial vehicles:-
13 configurable light effects
-
4 intensity levels
-
Real-time light status monitoring
-
Automatic connection detection (250 kbps / 500 kbps)
-
-
Voltage Control
For simpler applications, the device can be controlled via voltage signals:-
3 preset flashing modes (red, amber, green)
-
Immediate operation, no programming required
-

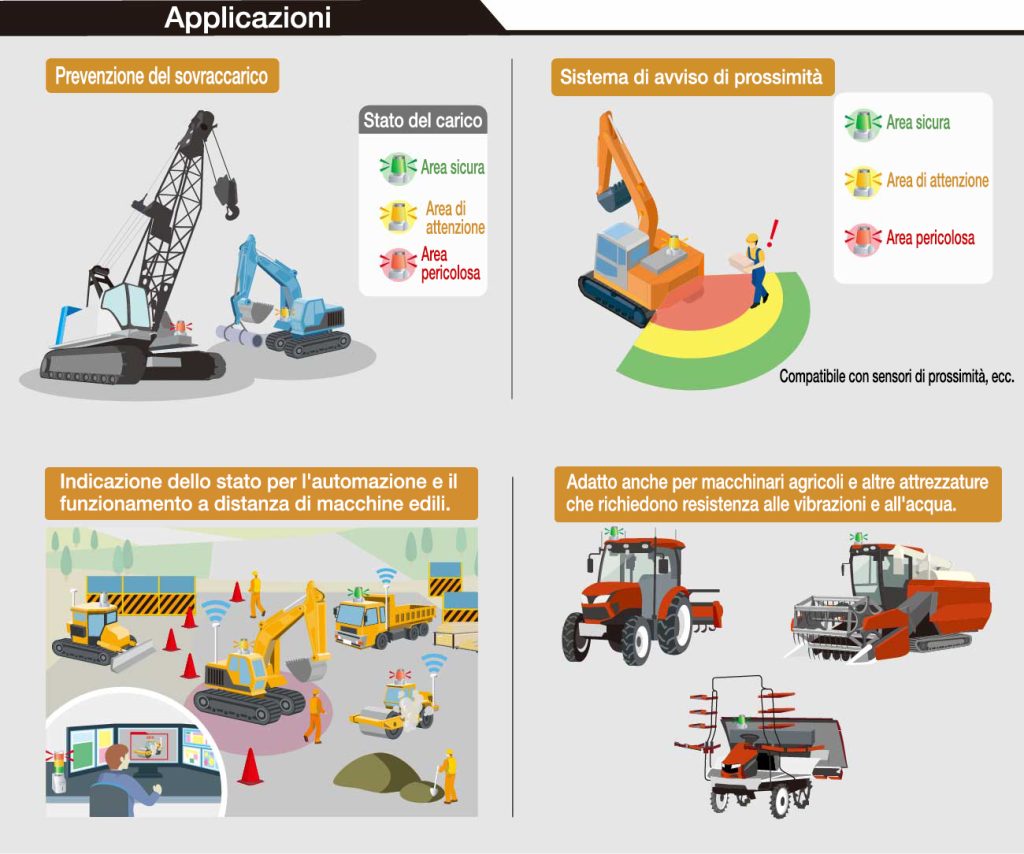

Applications
Find all the details and technical specifications on the dedicated page. This new solution sets the ideal standard for visual signaling in extreme environments.
Technical datasheet available here:
https://www.sensormatic.it/wp-content/uploads/2025/04/PATLITE-GL10-Catalog_IT.pdf
